Product Description
1. Features
* Patented appearance design, Fins heating dissipation design enables the LED Tj within 85℃,
and power up to 200W, lifespan more than 50,000 hours.
* Using Philips 3030 LED, the lamp’s luminous efficiency can reach 110~125LM/W, and CRI>80Ra.
* This lamp is pretty and dustproof, with protecting rate:IP65.
* The high efficiency power supply had passed UL,TUV,SAA certificates with input voltage 90-305VAC.
* With much less weight than before generation LED high bay light(reduced almost 70%) and much more lumen output than before LED high bay lights(increase nearly 30-40%)
2. Applications

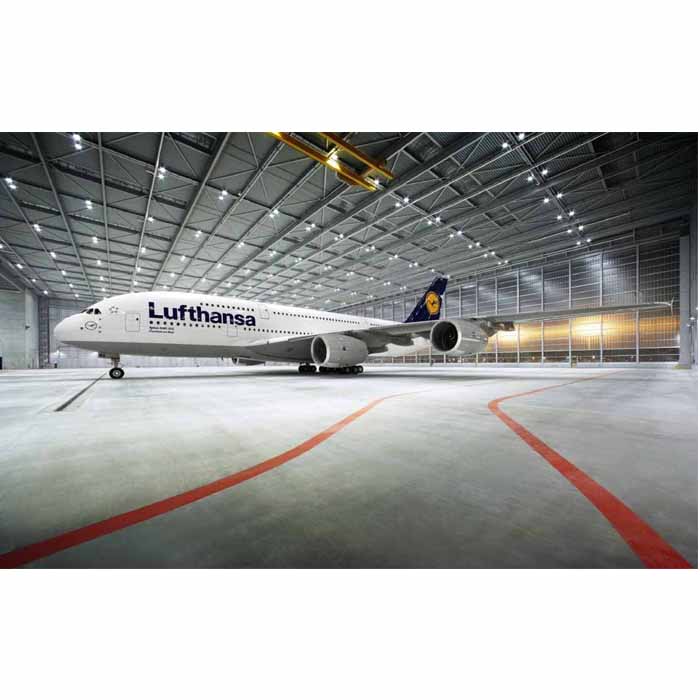

Widely used in workshop, factory, warehous, gas station, toll station, exhibition hall, stadium and other lighting places.
3. Parameters
|
Model |
XL-HB2G-100W |
XL-HB2G-120W |
XL-HB2G-150W |
XL-HB2G-200W |
|
LED Type |
Philips 3030 LED |
Philips 3030 LED |
Philips 3030 LED |
Philips 3030 LED |
|
LED Chips |
Philips |
Philips |
Philips |
Philips |
|
Input Voltage |
AC90-305V |
AC90-305V |
AC90-305V |
AC90-305V |
|
Power Factor |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
|
Rate Power |
100W |
120W |
150W |
200W |
|
CCT |
2700K~6500K |
2700K~6500K |
2700K~6500K |
2700K~6500K |
|
Luminous Flux |
110-125lm/W |
110-125lm/W |
110-125lm/W |
100-115lm/W |
|
Water Proof |
IP65 |
IP65 |
IP65 |
IP65 |
|

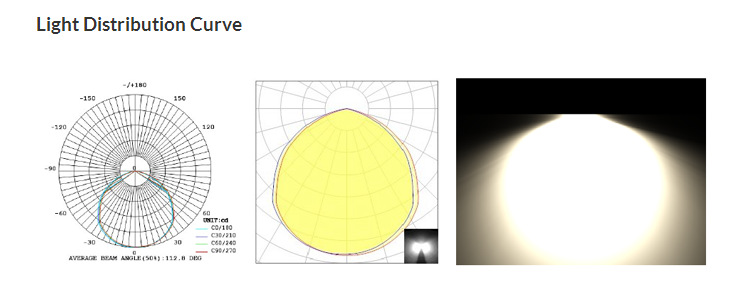

Beam Angle |
110° |
110° |
110° |
110° |
|
Material |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
|
Lamp Size |
Ø280*138mm |
Ø280*138mm |
Ø366*156mm |
Ø366*156mm |
|
Package Dimension |
（L）330×(W)330×(H)220mm |
（L）330×(W)330×(H)220mm |
（L）425×(W)425×(H)225mm |
（L）425×(W)425×(H)225mm |
|
Carton G.W. |
4.8kg |
4.8kg |
8.8kg |
9kg |
|
pcs/CTN |
1pc/CTN |
1pc/CTN |
1pc/CTN |
1pc/CTN |
|
Warranty |
Five Years |
Five Years |
Five Years |
Five Years |
