LED IP44 SLIM RECESSED DOWNLIGHT 7-30W-Product Center-EP LIGHTING INDUSTRY CO.,LTD.-

Product Description

1. Features



--We only use Samsung SMD5630 with CRI 83 as light source,creat high lighting performance.

--Pure aluminium die casting fixture with heavy material, never use platic / cheap ones.

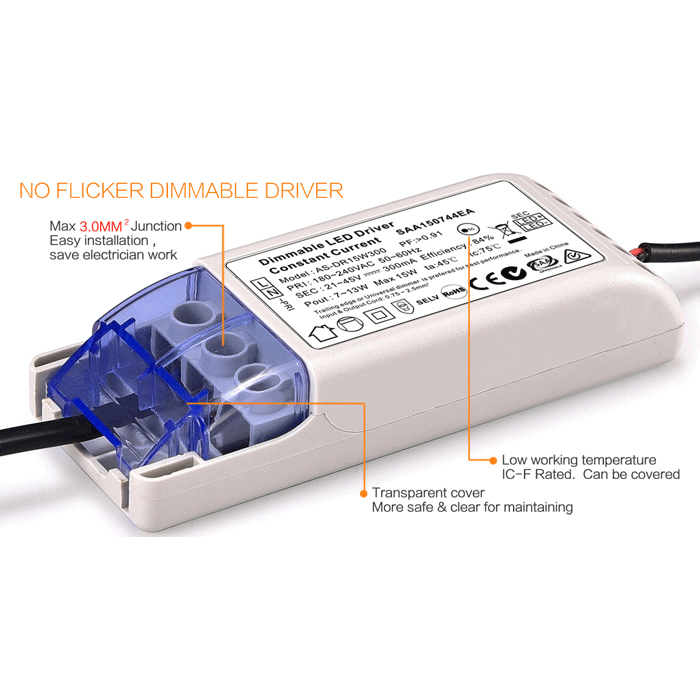

--NO FLICKERS, Each light creat a friendly & smooth lighting

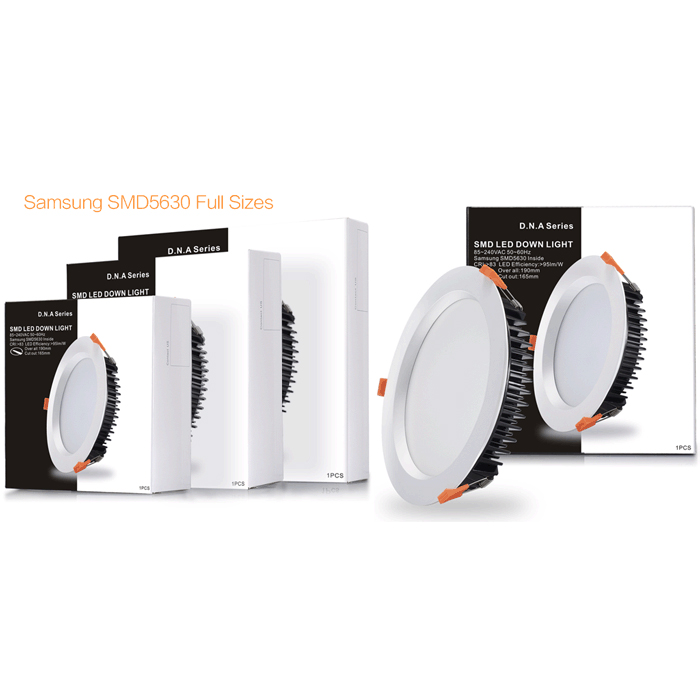

--2.5inch, 3inch, 4inch, 5inch, 6inch, 8inch, replacing the traditional CFL downlight directly.

--The SMD LED downlight comes with 120°wide beam angle.
--Frosted anti-glare PMMA lens adopted for high LOR.

--Three years warranty,high quality guaranteed.

2.Specification


Model

HP7WSF

HP15WSN

HP20WSN

HP30WSN

LED Type

SMD 5630 LED

SMD 5630 LED

SMD 5630 LED

SMD 5630 LED

LED Chips

Samsung

Samsung

Samsung

Samsung

Input Voltage

AC 180-240V (50/60Hz)

AC 180-240V (50/60Hz)

AC 180-240V (50/60Hz)

AC 180-240V (50/60Hz)

Power Factor

>0.91

>0.91

>0.91

>0.91

Rate Power

7W

15W

20W

30W

CCT

2700K~6500K

2700K~6500K

2700K~6500K

2700K~6500K

Luminous Flux

520Lm

1240Lm

1680Lm

2480Lm

CRI

83

83

83

83

Beam Angle

120°

120°

120°

120°

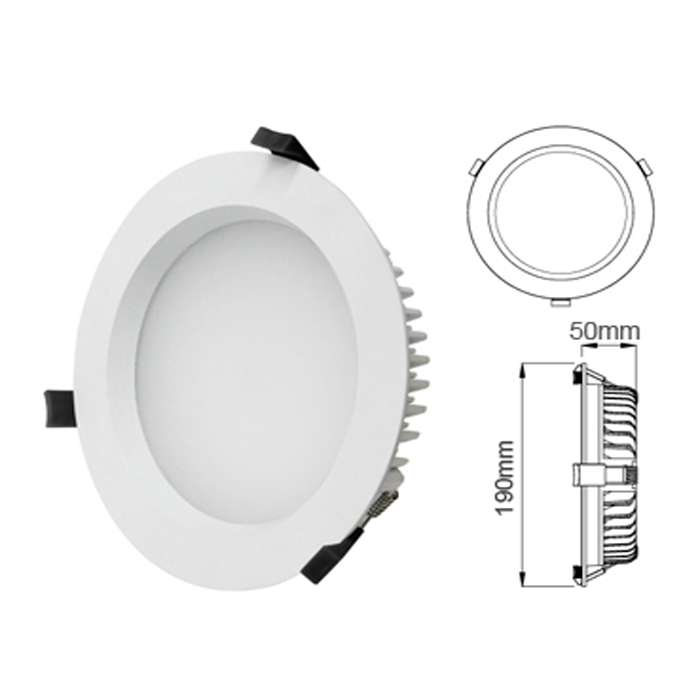

Surface Size

Ø85*33/38mm

Ø145*45mm

Ø190*45mm

Ø230*45mm

Hole Size

70mm

120mm

165mm

200mm

Install Method

Recessed/Flat frame

Recessed

Recessed

Recessed

Warranty

Three Years

Three Years

Three Years

Three Years



Hits: 【Print】
