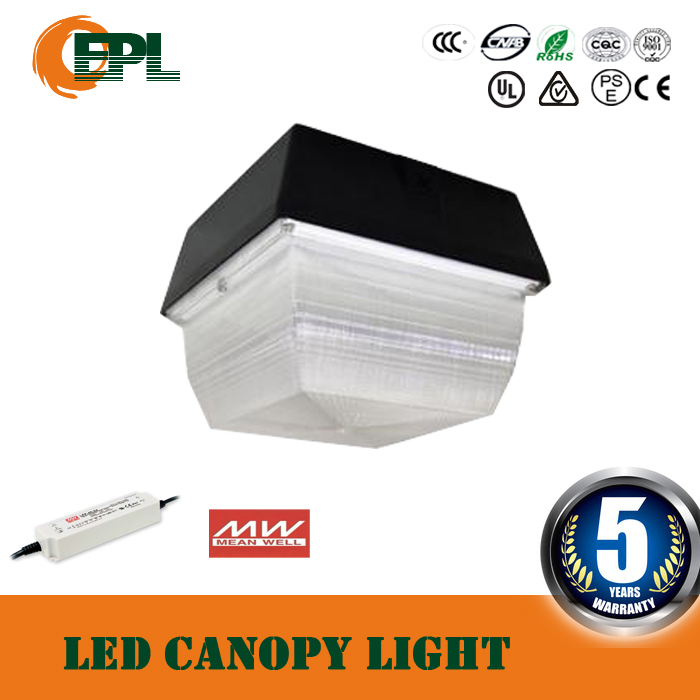

LED CANOPY LIGHT-Product Center-EP LIGHTING INDUSTRY CO.,LTD.-

Product Description

1. EP LED Canopy light Features

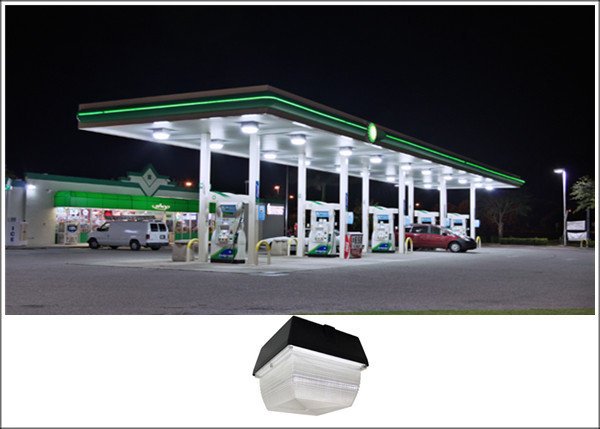

▼ general-purpose applications in parking garages and gas stations.

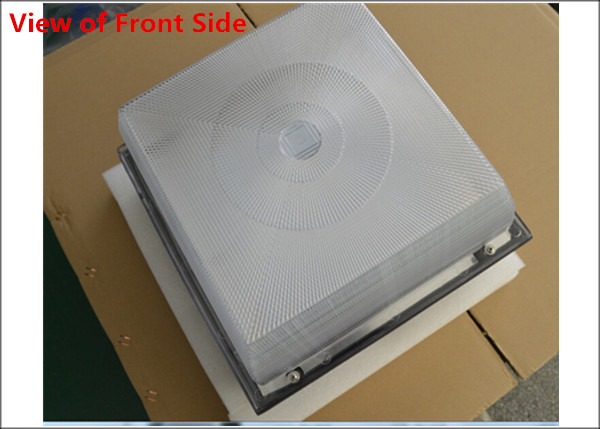

▼ Fixture material is Die-casting aluminum + Shatter proof polycarbonate lens.

 High lumen output, 95-105LM/W.

▼ 80+ CRI. CRI95 can be reached if you required.

▼ Recessed outlet box or ceiling surface.

▼ CCT 3,000K 4,000K 5,000K.

▼ IP65 rated and suitable for wet locations.

▼ No RF interference, No IR/UV radiation, no mercury pollution

2.Specification

Model

CP02040

CP02060

CP02090

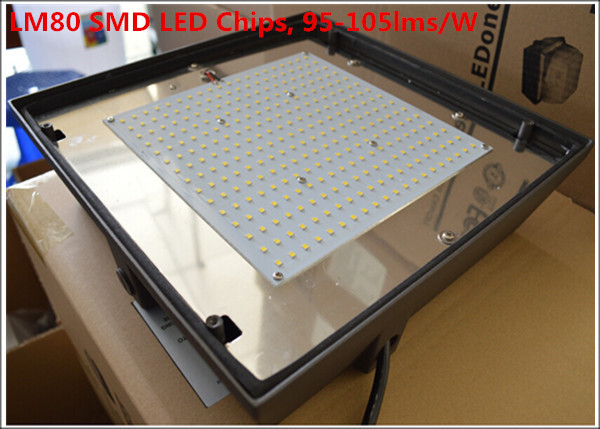

LED Type

SMD 2835 or 5730

SMD 2835 or 5730

SMD 2835 or 5730

LED Chips

LM80 approved

LM80 approved

LM80 approved

Mount

Recessed outlet box Or wall surface

Recessed outlet box Or wall surface

Recessed outlet box Or wall surface

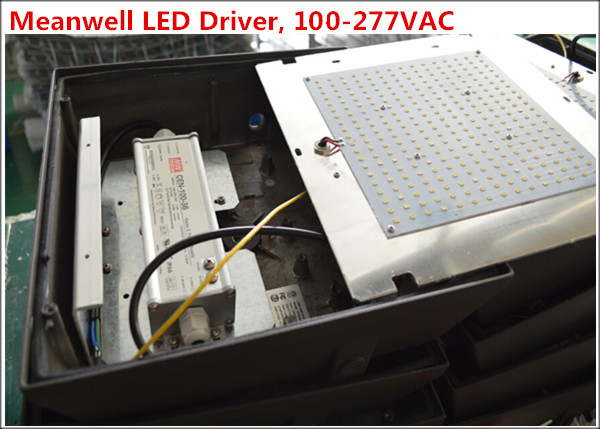

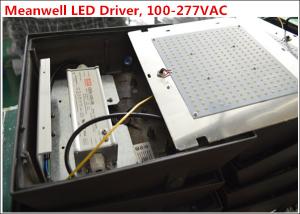

Input Voltage

AC 100-277V (50/60Hz)

AC 100-277V (50/60Hz)

AC 100-277V (50/60Hz))

Rate Power

40±1W

60±1W

90±1W

Equivalent Wattage

150W

250W

400W

CCT

2700K~6500K

2700K~6500K

2700K-6500K

Light Efficiency

95-105lms/W

95-105lms/W

95-105lms/W

Material

Tempered glass and Die-casting aluminum

Tempered glass and Die-casting aluminum

Tempered glass and Die-casting aluminum

Operating Temp.

 -30130°F (-3454°C)

 -30130°F (-3454°C)

 -30130°F (-3454°C)

Operating Humidity

20–85% RH, non-condensing

20–85% RH, non-condensing

20–85% RH, non-condensing

Dimension

226*226*183mm

313*313*226mm

313*313*226mm

Waterproof

IP65

IP65

IP65

Warranty

Five Years

Five Years

Five Years
