IP65 LED TRIPROOF T8 TUBE LIGHT GARAGE LIGHT-Product Center-EP LIGHTING INDUSTRY CO.,LTD.-

Product Description

1. Features

EP IP65 LED WATERPROOF T8 TUBE LIGHT are suitable for indoor/outdoor using such as warehouse, breeding farms, railway stations, vessels, petrol stations and etc. The slim design and easy/multi install method help contractors/designers better to help building get a easy retrofit.

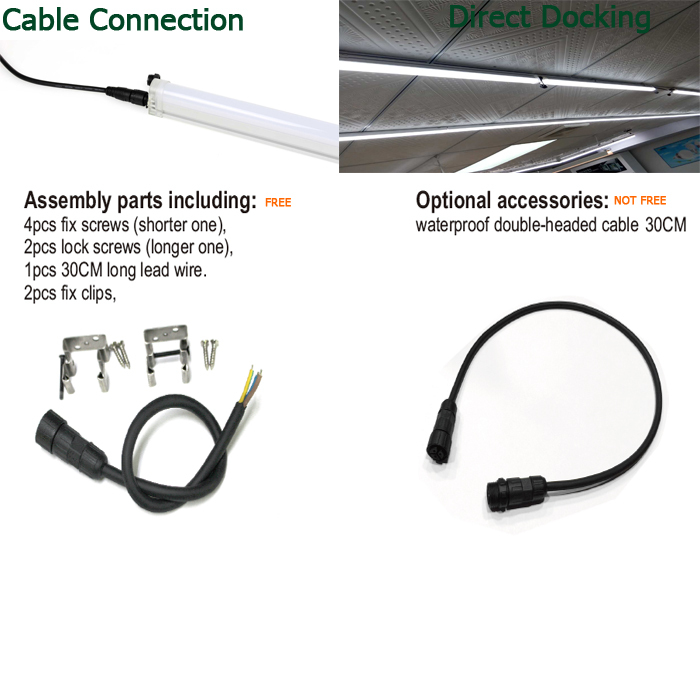

 2.Accessory



3. Install Instruction



4.Specification

Model

TP-600-18W

TP-900-24W

TP-1200-30W

TP-1500-40W

TP-1500-50W

LED Type

SMD 2835 LED

SMD 2835 LED

SMD 2835 LED

SMD 2835 LED

SMD 2835 LED

LED Chips

Epistar Chips

Epistar Chips

Epistar Chips

Epistar Chips

Epistar Chips

Input Voltage

AC 85-265V (50/60Hz)

AC 85-265V (50/60Hz)

AC 85-265V (50/60Hz)

AC 85-265V (50/60Hz)

AC 85-265V (50/60Hz)

Driver Efficiency

>90%

>90%

>90%

>90%

>90%

Rate Power

18±1W

24±1W

30±1W

40±1W

50±1W

CCT

2700K~6500K

2700K~6500K

2700K~6500K

2700K~6500K

2700K~6500K

Luminous Flux

110lm/w

110lm/w

110lm/w

110lm/w

110lm/w

CRI

80

80

80

80

80

Bean Angle

180°±5°

180°±5°

180°±5°

180°±5°

180°±5°

PF

≥0.9

≥0.9

≥0.9

≥0.9

≥0.9

Dimension (no pin)

:L600 xW30x H40mm

L900 xW30x H40mm

:L1200 xW30x H40mm

L1500 xW30x H40mm

L1500 xW30x H40mm

Waterproof

IP65

IP65

IP65

IP65

IP65

Warranty

Three Years

Three Years

Three Years

Three Years

Three Years
