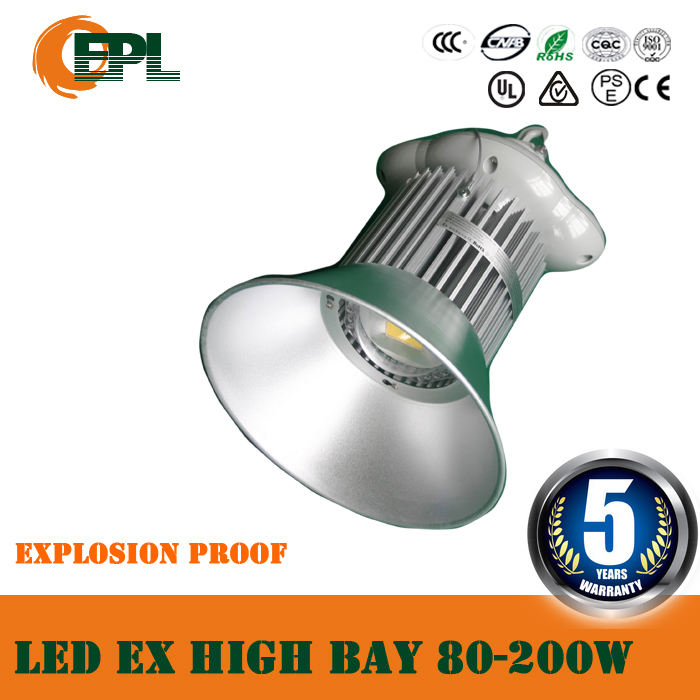

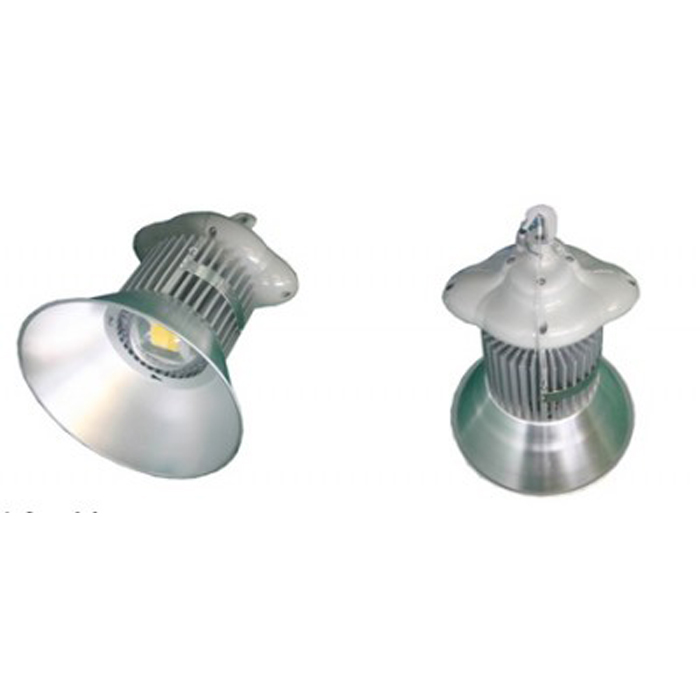

Product Description

1. Features

*  Adopting MeanWell  power supply, Cree LED Chips.

*  Five years warranty

*  Explosion-proof Certificated



2. Applications

*  Gas station,processing workshop or storage warehouse for Edible Oil,food and other oil products,smelting workshop which easily producing explosive dust and gases; chemical factories,warehouses and other special places.

*  Also can applied in Factories,workshops,Cargo space,exhibition centers,shopping malls or supermarkets,stadiums,toll stations, etc.


3. Specialty

1,Using high power COB Leds and Meanwell driver; the lamp’s luminous efficiency can reach 80-100LM/W, and Ra >80;Fins heating dissipation design enables the LED Tj within 85, lifespan more than 35,000 hours ,the max power up to 200W; with protecting rate: IP65.

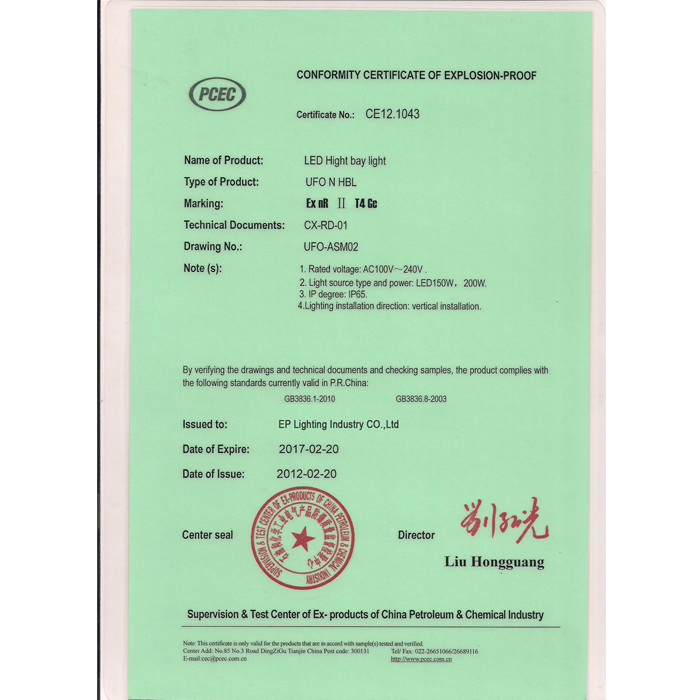

2, The anti-explosion high bay light is designed and certified according to standards for safety as below: GB3836.1-2010  Explosive environment Part 1:Equipment General Requirements;GB3836.8-2003 Electrical apparatus for explosive gas atmospheres-Part8: standards for “n” type electrical equipment; with Ex-marking Ex NR T4 Gc.

3, The light can be used at a place in which an explosive atmosphere in the form of explosive dust or combustible fibre in mixture with air is likely to occur continuously or frequently in short time, or for long periods in normal operation. According to the classification of explosion proof grade and application, the light can be use in Zone2. Surface temperature of item for safety:≤135,Such as chemical factory or warehouse, gas station except mines.


4. Lamp Parameter

Model

XL-400HBL80W-Ex

XL-400HBL100W-Ex

XL-400HBL150W-Ex

XL-400HBL200W-Ex

LED Type

High Power COB LED

High Power COB LED

High Power COB LED

High Power COB LED

LED Chips

CREE or Bridgelux

CREE or Bridgelux

CREE or Bridgelux

CREE or Bridgelux

Input Voltage

AC100~240V
AC200~480V For
North America

AC100~240V
AC200~480V For
North America

AC100~240V
AC200~480V For
North America

AC100~240V
AC200~480V For
North America

Power Factor

>0.97

>0.97

>0.97

>0.97

Rate Power

80W

100W

150W

200W

CCT

2700K~6500K

2700K~6500K

2700K~6500K

2700K~6500K

Luminous Flux

80-100lm/W

80-100lm/W

80-100lm/W

80-100lm/W

Explosion Proof

Yes

Yes

Yes

Yes

Beam Angle

100°

100°

100°

100°

Material

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Lamp Size

Ø400*518mm

Ø400*568mm

Ø400*598mm

Ø400*648mm

Package

BodyL412×(W)312×(H)428mm                        ReflectorL472×(W)472×(H)274mm

BodyL412×(W)312× (H)479mm                  ReflectorL472×(W)472×(H)274mm

BodyL412×(W)312×(H)508mm                    ReflectorL472×(W)472×(H)274mm

BodyL412×(W)312×(H)558mm                 ReflectorL472×(W)472×(H)274mm

Body: 1pc/CTN          Reflector: 10pcs/CTN

Body: 1pc/CTN          Reflector: 10pcs/CTN

Body: 1pc/CTN          Reflector: 10pcs/CTN

Body: 1pc/CTN          Reflector: 10pcs/CTN

G.W. of Body:    10Kg                    G.W. of Reflector:  4.5Kg

G.W. of Body:    12Kg                    G.W. of Reflector:  4.5Kg

G.W. of Body:    13.5Kg                    G.W. of Reflector:  4.5Kg

G.W. of Body:    15.5Kg                    G.W. of Reflector:  4.5Kg

Warranty

Five Years

Five Years

Five Years

Five Years

Hits: 【Print】

Related Products

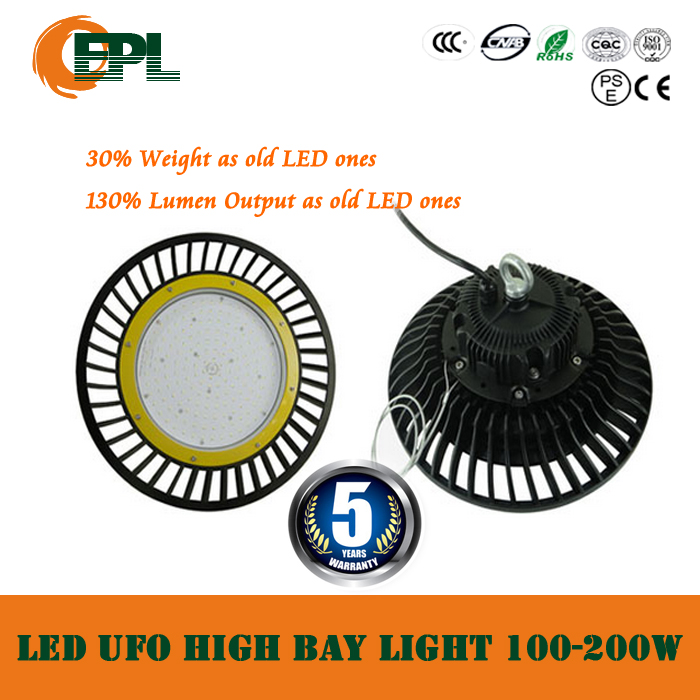

UFO LED High Bay...
