Product Description

1. Features

--High power downlight, from 60 watts to 140 watts, with slim design (8 inch).

--Imported original branded LED be used such as CITIZEN, SAMSUNG and CREE.

--The best high power LED external driver brand MEANWELL be used in this series.

--To replace traditional HID 100W — 400W.

--High CRI, 80/90/97 optional for your site requirement.
--Multiple choice for the beam angle and light distribution by different lens design.

--Five years warranty,high quality guaranteed.

2.Specification



Model

HP60WCH

HP70WAH

HP70WBH

LED Type

COB

SMD

SMD

LED Chips

CITIZEN/NICHIA

Samsung

Samsung

Input Voltage

AC 100-240V (50/60Hz)

AC 100-240V (50/60Hz)

AC 100-240V (50/60Hz)

Power Factor

>0.97

>0.97

>0.97

Rate Power

60W

70W

70W

CCT

2700K~6500K

2700K~6500K

2700K~6500K

Luminous Flux

5000lm

6300lm

6200lm

CRI

80,90,97 optional (High CRI will cause lumen lower)

Beam Angle

40°

90°

60°

Surface Size

Ø197*135H mm

Ø233*140H mm

Ø233*140H mm

Hole Size

175 mm   /7"

205 mm  /8"

205 mm  /8"

Install Method

Recessed

Recessed

Recessed

Warranty

Five Years

Five Years

Five Years



3.Applications

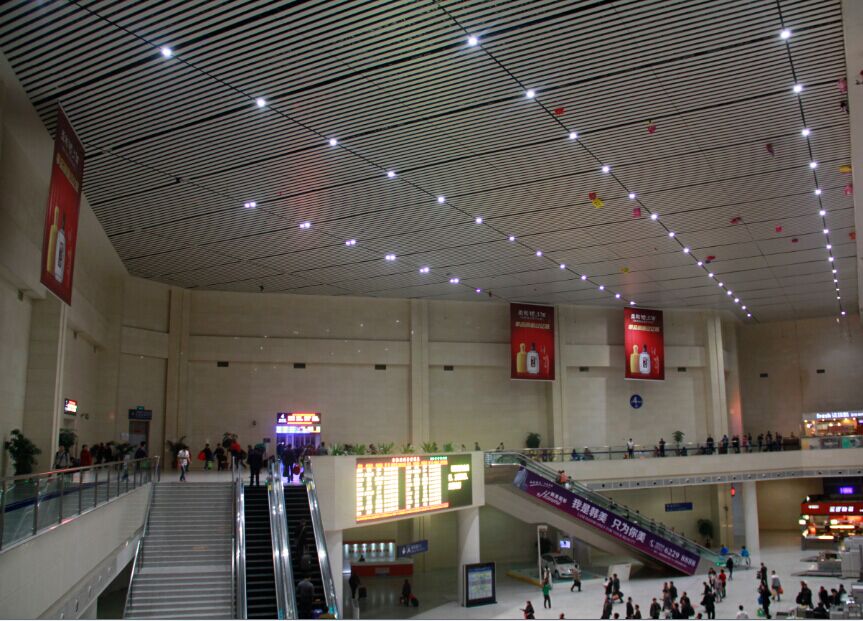

It can be widely used in hotels, shopping malls, exhibition halls, airports, railway stations and any other indoors use.
