Product Description
1. Features
--High power downlight, from 60 watts to 140 watts, with slim design (6-8 inch).
--Imported original branded LED be used such as CITIZEN, SAMSUNG and CREE.
--The best high power LED external driver brand MEANWELL be used in this series.
--To replace traditional HID 100W — 400W.
--High CRI, 80/90/97 optional for
your site requirement.
--Multiple choice for the beam
angle and light distribution by different lens design.
--Five years warranty,high quality guaranteed.
2.Specification
|
Model |
HP60WCH |
HP70WAH |
HP70WBH |
|
LED Type |
COB |
SMD |
SMD |
|
LED Chips |
CITIZEN/NICHIA |
Samsung |
Samsung |
|
Input Voltage |
AC 100-240V (50/60Hz) |
AC 100-240V (50/60Hz) |
AC 100-240V (50/60Hz) |
|
Power Factor |
>0.97 |
>0.97 |
>0.97 |
|
Rate Power |
60W |
70W |
70W |
|
CCT |
2700K~6500K |
2700K~6500K |
2700K~6500K |
|
Luminous Flux |
5000lm |
6300lm |
6200lm |
|
CRI |
80,90,97 optional (High CRI will cause lumen lower) |
||
|
Beam Angle |
40° |
90° |
60° |
|
Surface Size |
Ø197*135H mm |
Ø233*140H mm |
Ø233*140H mm |
|
Hole Size |
175 mm /7" |
205 mm /8" |
205 mm /8" |
|
Install Method |
Recessed |
Recessed |
Recessed |
|
Warranty |
Five Years |
Five Years |
Five Years |
3.Applications

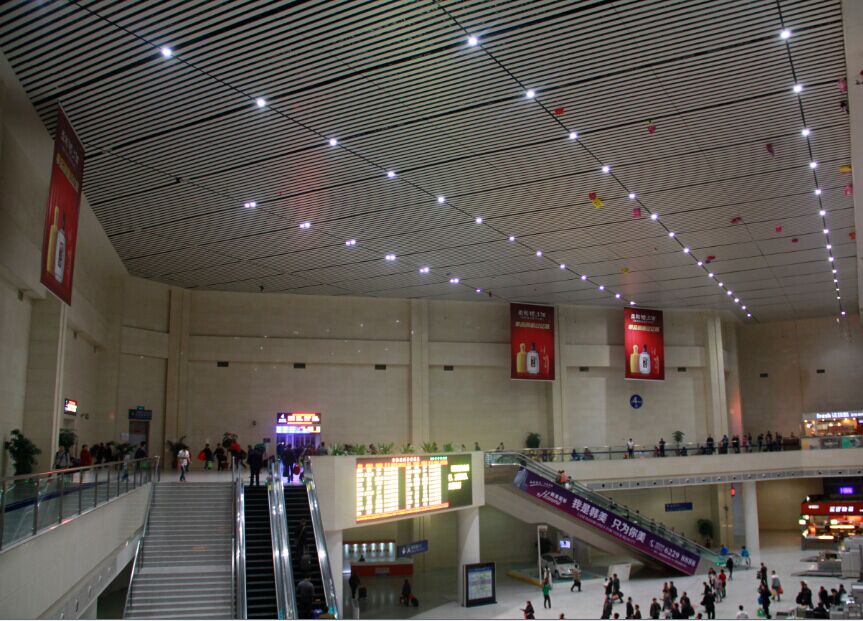

It can be widely used in hotels, shopping malls, exhibition halls, airports, railway stations and any other indoors use.
