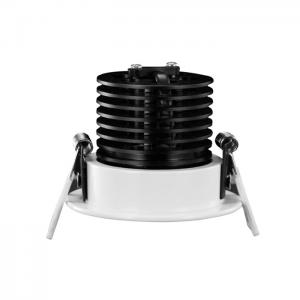

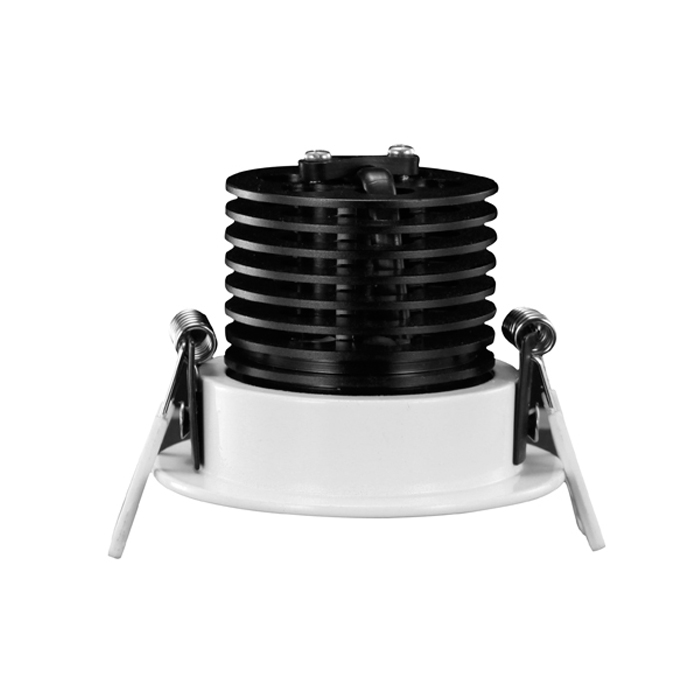

7~30 watts LED COB Downlight CRI90-Product Center-EP LIGHTING INDUSTRY CO.,LTD.-

Product Description

1. Features

High effects energy-saving.

High CRI 90~95 resume the true light appear for exhibiting goods;

COB chips help the perfect light distribution curve;

Green material without mercury,easy for recycle.

DC drive without flicker,excellent for reading ,family,office

Compared with halogen lamp,the downlight LED generate low heat ,high effects up to 90% energy for lighting.


2.Specification


Model

HP7WSS

HP12WSS

HP20WSS

HP30WSS

LED Type

COB LED

COB LED

COB LED

COB LED

LED Chips

Sharp COB

Sharp COB

Sharp COB

Sharp COB

Input Voltage

AC 180-240V (50/60Hz)

AC 180-240V (50/60Hz)

AC 180-240V (50/60Hz)

AC 180-240V (50/60Hz)

Power Factor

>0.91

>0.91

>0.91

>0.91

Rate Power

7W

12W

20W

30W

CCT

2700K~6500K

2700K~6500K

2700K~6500K

2700K~6500K

Luminous Flux

595lm

1020lm

1700lm

2550lm

CRI

90

90

90

90

Beam Angle

25°/40° /60°/120°

25°/40° /60°/120°

25°/40° /60°/120°

25°/40° /60°/120°

Surface Size

Ø85*70mm

Ø110*85mm

Ø138*105mm

Ø160*120

Hole Size

70mm

95mm

120mm

 140mm

Install Method

Recessed

Recessed

Recessed

Recessed

Warranty

Three Years

Three Years

Three Years

Three Years
