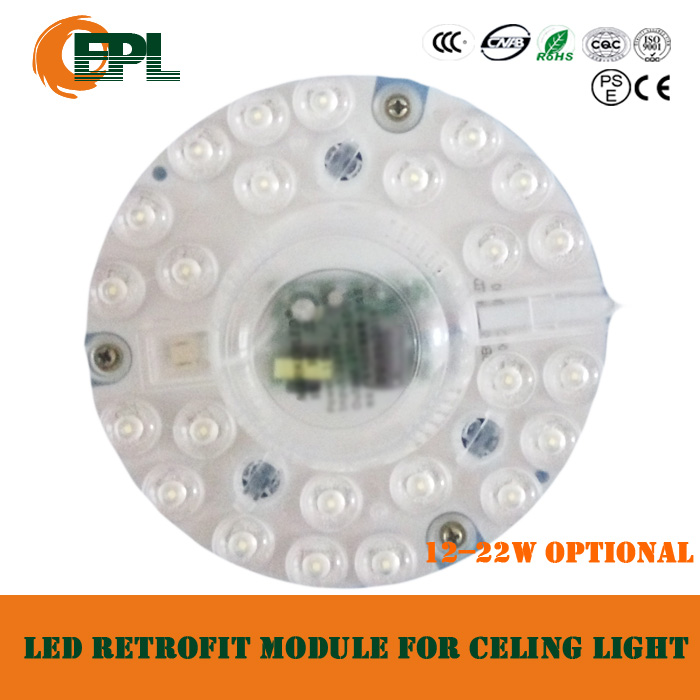

Product Description
1. Features
--Total light transmittance is 92% with excellent transparency by unique lens design.

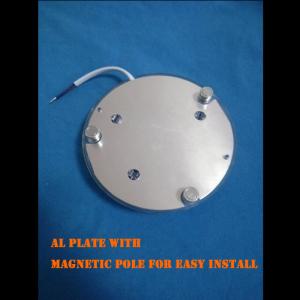

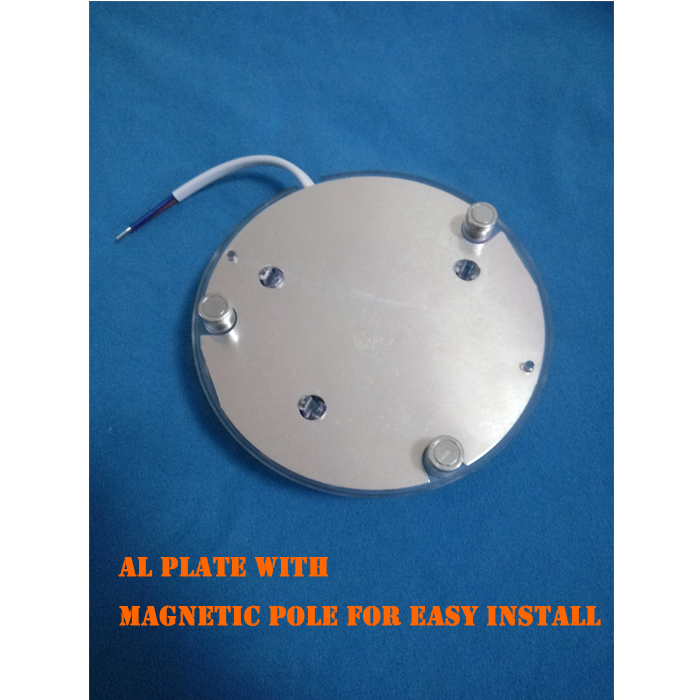

--Aluminum board help good heat dissaption.

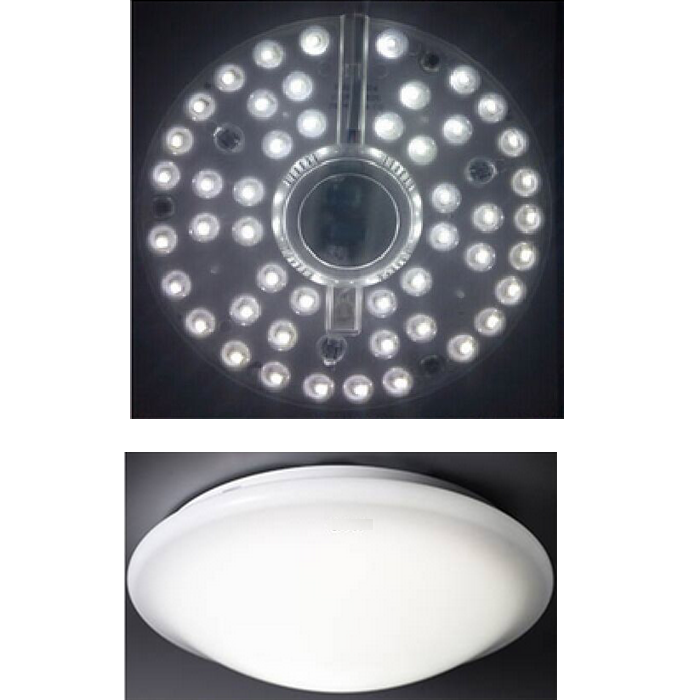

--NO FLICKERS, Each light creat a friendly & smooth lighting

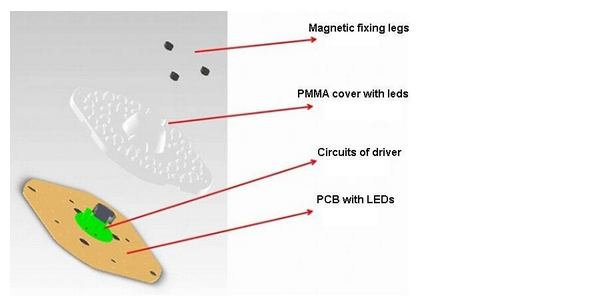

--LED driver is intergrated in the module, make the installation easier.

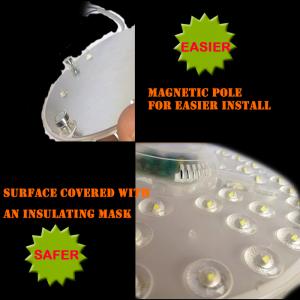

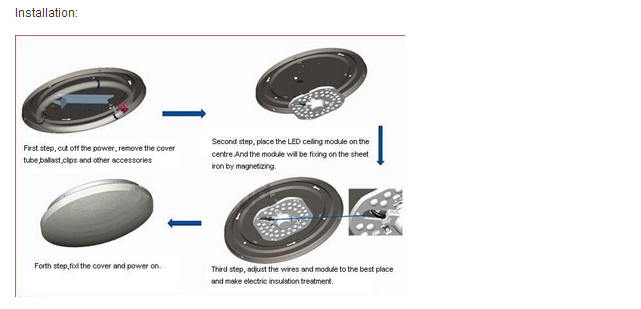

--Magnetic pole intergrated in the module, no screw needed.
2.Specification
| Model NO | EP-MDL-1202 | EP-MDL-1602 | EP-MDL-2202 |
| WATTS W | 12W | 16W | 22W |
| Lumens Output | 1300lm | 1980LM | 2640LM |
| LIGHT COLOR (CCT) K | 2700-6500K | 2700-6500K | 2700-6500K |
| BEAM ANGLE ˚ | 120º | 120º | 120º |
| LED Chips | Seoul or LG |
Seoul or LG | Seoul or LG |
| COLOR ACCURACY (CRI) Ra | >80 | >80 | >80 |
| Warranty | 3 years | 3 years | 3 years |
| LED DRIVER POSITION | internal Driver, connect with wire | ||
| INPUT VOLTAGE (AC/DC) V | 90-130 or 175-265V | ||

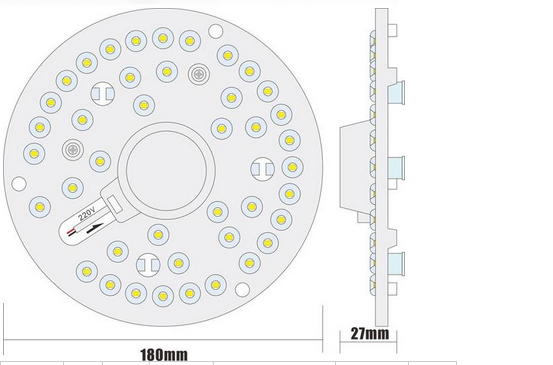

| DIMENSION (mm) | Ф125*27mm | Ф180*27mm | Ф180*27mm |
| Material | Aluminum board+PMMA lens | ||
| Suggest Ceiling Light Dimensioin | 230mm-280mm | 350mm/420mm | 350mm/420mm |
| To Replace | 21-28w circle or 2D tube | 35-42w circle or 2D tube | 35-42w circle or 2D tube |
