Product Description
1. Features
EP IP65 LED WATERPROOF T8 TUBE LIGHT are suitable for indoor/outdoor using such as warehouse, breeding farms,
railway stations, vessels, petrol stations and etc. The slim design and
easy/multi install method help contractors/designers better to help building
get a easy retrofit.
2.Accessory

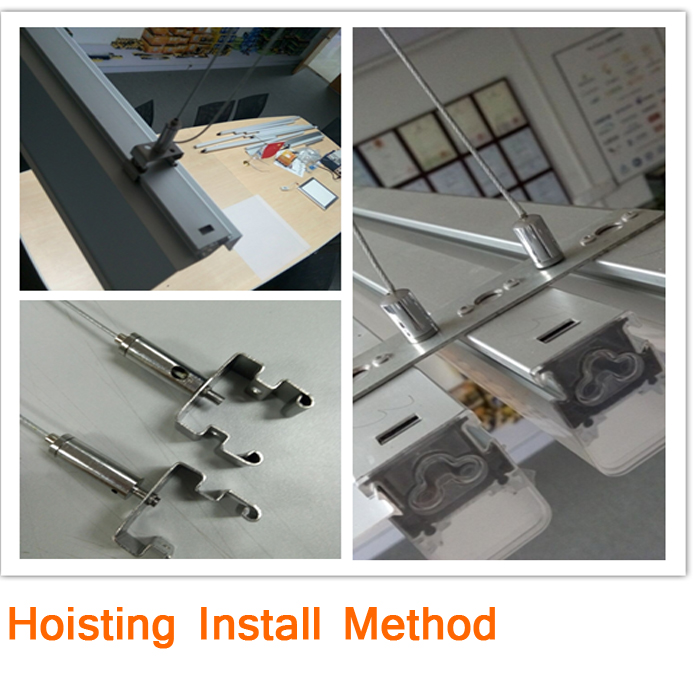

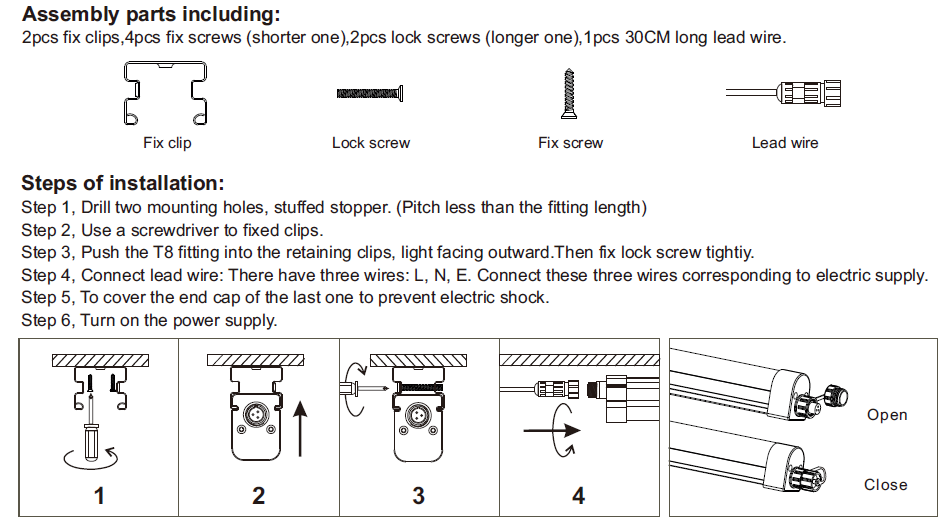

3. Install Instruction
4.Specification
|
Model |
TP-600-18W |
TP-900-24W |
TP-1200-30W |
TP-1500-40W |
TP-1500-50W |
|
LED Type |
SMD 2835 LED |
SMD 2835 LED |
SMD 2835 LED |
SMD 2835 LED |
SMD 2835 LED |
|
LED Chips |
Epistar Chips |
Epistar Chips |
Epistar Chips |
Epistar Chips |
Epistar Chips |
|
Input Voltage |
AC 85-265V
(50/60Hz) |
AC 85-265V
(50/60Hz) |
AC 85-265V
(50/60Hz) |
AC 85-265V
(50/60Hz) |
AC 85-265V
(50/60Hz) |
|
Driver Efficiency |
>90% |
>90% |
>90% |
>90% |
>90% |
|
Rate Power |
18±1W |
24±1W |
30±1W |
40±1W |
50±1W |
|
CCT |
2700K~6500K |
2700K~6500K |
2700K~6500K |
2700K~6500K |
2700K~6500K |
|
Luminous Flux |
110lm/w |
110lm/w |
110lm/w |
110lm/w |
110lm/w |
|
CRI |
≧80 |
≧80 |
≧80 |
≧80 |
≧80 |
|
Bean Angle |
180°±5° |
180°±5° |
180°±5° |
180°±5° |
180°±5° |
|
PF |
≥0.9 |
≥0.9 |
≥0.9 |
≥0.9 |
≥0.9 |
|
Dimension (no pin) |
:L600 xW30x H |
L900 xW30x H |
:L1200 xW30x H |
L1500 xW30x H |
L1500 xW30x H |
|
Waterproof |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Warranty |
Three Years |
Three Years |
Three Years |
Three Years |
Three Years |
