Product Description
1. Features
1. IP64
rated waterproof, dustproof, insect proof

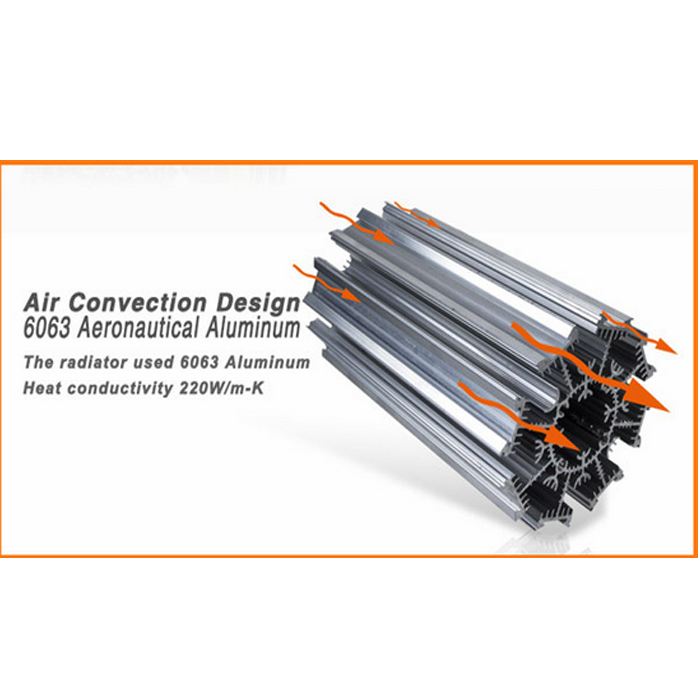

2. Internal
driver with fan, aluminum driver box for heat dissipation,easier to install.
3. High
brightness Samsung SMD chip, low luminous decay, light color pure and no dark shade;
4. Imported
PC lens, light transmission rate over 93%;
5. Beam
angle:360 degree

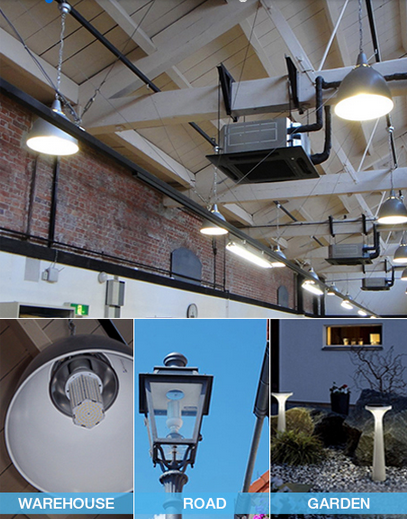

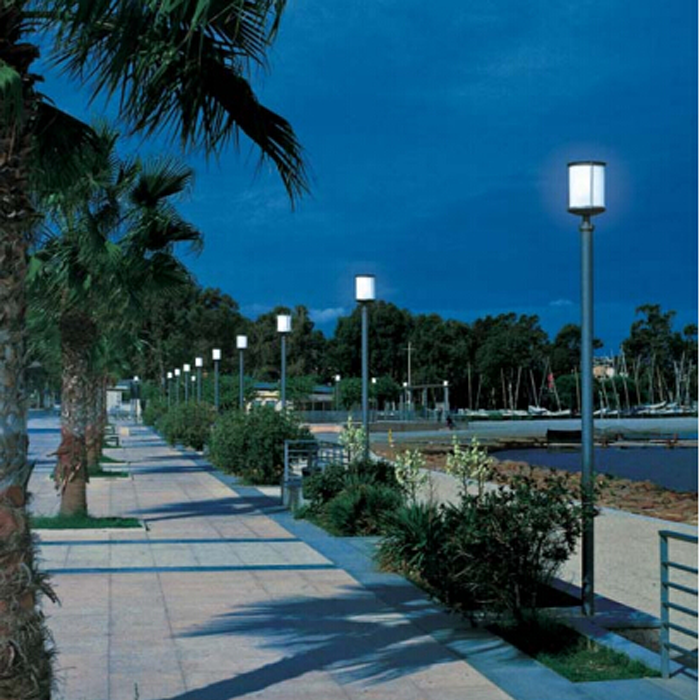

6. Wildly used in Street lighting, Roadway lighting, Area Lighting, Pathway lighting, Car Parking, Garden lighting.
2.Specification
|
Model |
CL-20W05 |
CL-30W05 |
CL-40W05 |
CL-60W05 |
CL-80W05 |
CL-100W05 |
CL-120W05 |
|
Description |

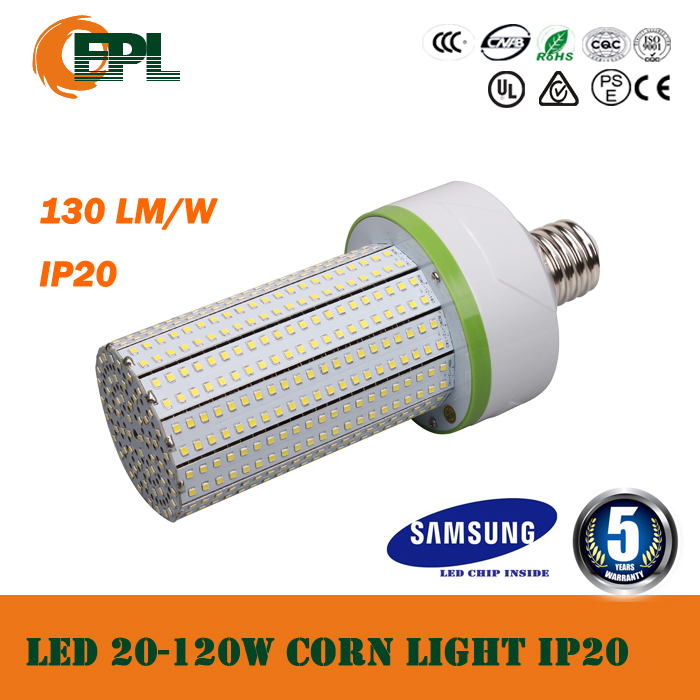

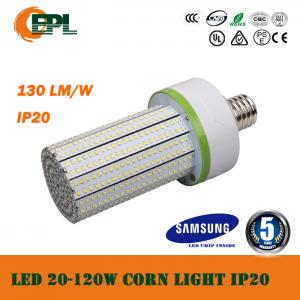

20W-120W LED corn lights, Ra>80, 110-130Lm/W,360°, Samsung LED,IP20 |
||||||
|
CCT(Kelvin) |
2700-6500k |
||||||
|
Input voltage |
100~277VAC(PF>0.9) Non dimmable |
||||||
|
Socket |
E26/E27 |
E26/E27/E39/E40 |
E39/E40 |
||||
|
Basic size(mm) |
Φ73*155 |
Φ90*195 |
Φ90*215 |
Φ90*260 |
Φ112*255 |
Φ112*265 |
Φ111*275 |
|
Power(watts) |
20W |
30W |
40W |
60W |
80W |
100W |
120W |
|
Flux(Lm) |
2400lm |
3600lm |
4800lm |
7200lm |
10000lm |
12500lm |
14500lm |
|
Replace |
150W Incandescent / 40W CFL |
200W Incandescent / 60W CFL |
300W Incandescent / 80W CFL |
400W Incandescent / 120W CFL |
500W Incandescent / 150W CFL |
600W Incandescent / 200W CFL |
750W Incandescent / 250W CFL |
|
Model |
CL-30W06 |
CL-40W06 |
CL-60W06 |
CL-80W06 |
CL-100W06 |
CL-120W06 |
CL-150W06 |
|
Description |
20W-120W LED corn lights, Ra>80, 110-130Lm/W,360°, Samsung LED,IP64 |
||||||
|
CCT(Kelvin) |
2700-6500k |
||||||
|
Input voltage |
100~277VAC(PF>0.9) Non dimmable |
||||||
|
Socket |
E26/E27/E39/E40 |
E39/E40 |
|||||
|
Basic size(mm) |
Φ93*230 |
Φ93*260 |
Φ93*285 |
Φ125*270 |
Φ125*290 |
Φ125*310 |
Φ125*335 |
|
Power(watts) |
30W |
40W |
60W |
80W |
100W |
120W |
150W |
|
Flux(Lm) |
3350lm |
4400lm |
6600lm |
9200lm |
12000lm |
13800lm |
16500lm |
|
Replace |
200W Incandescent / 60W CFL |
300W Incandescent / 80W CFL |
400W Incandescent / 120W CFL |
500W Incandescent / 150W CFL |
600W Incandescent / 200W CFL |
750W Incandescent / 250W CFL |
900W Incandescent / 300W CFL |
