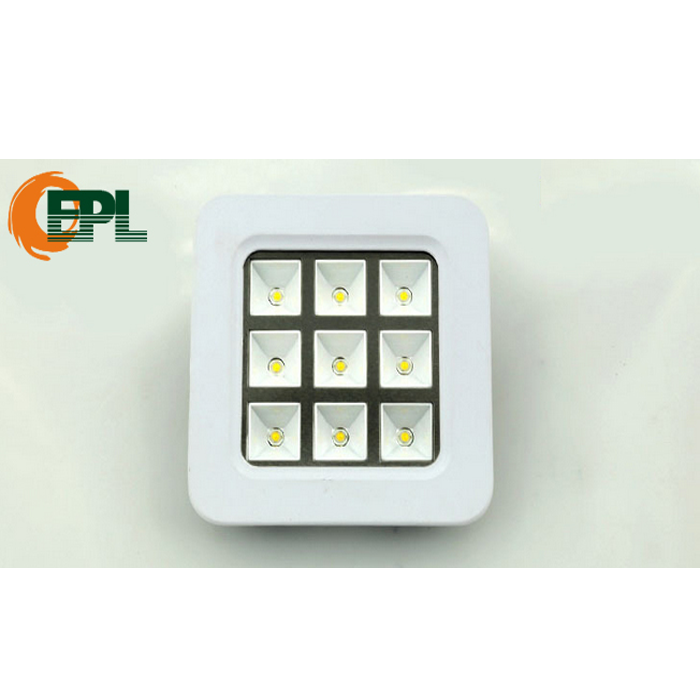

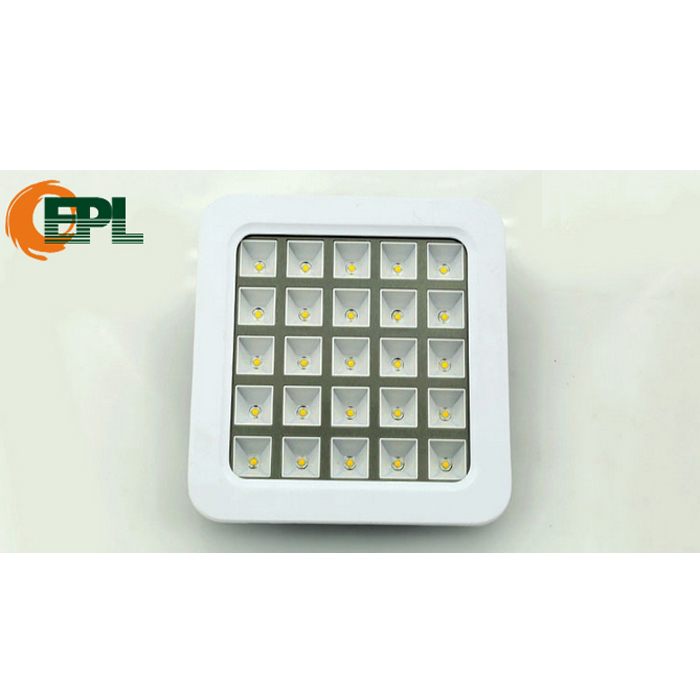

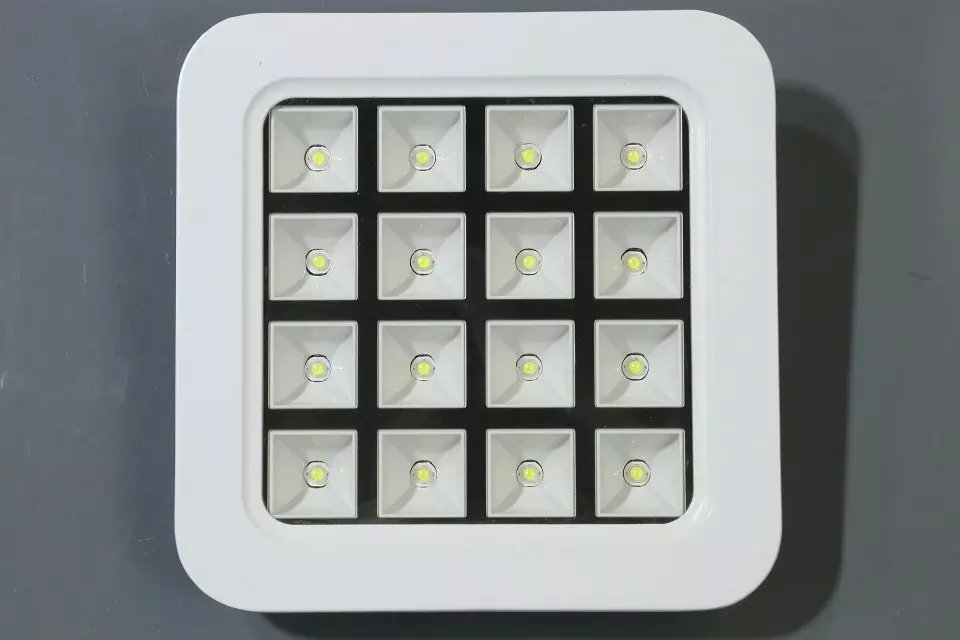

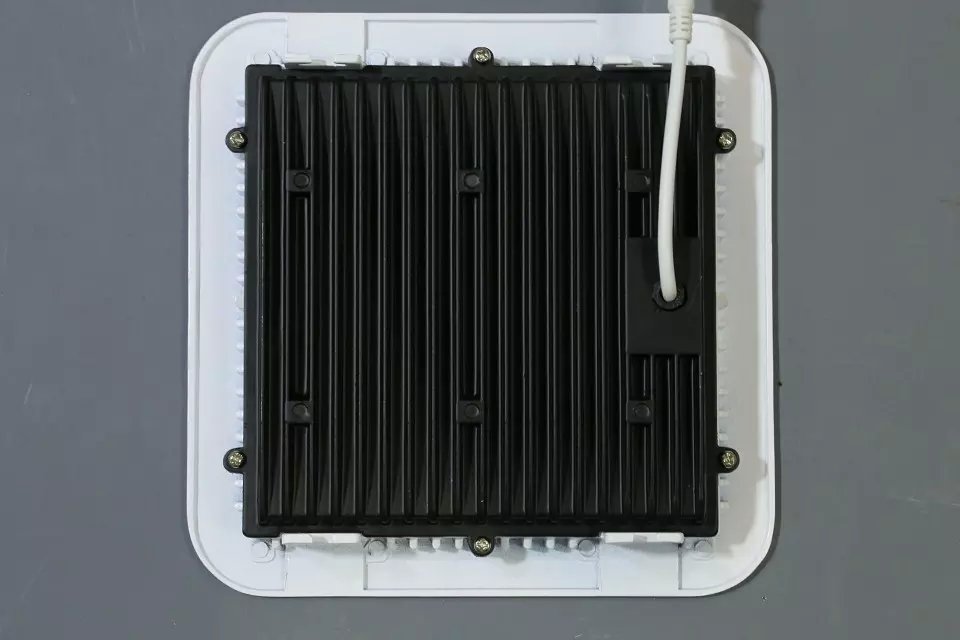

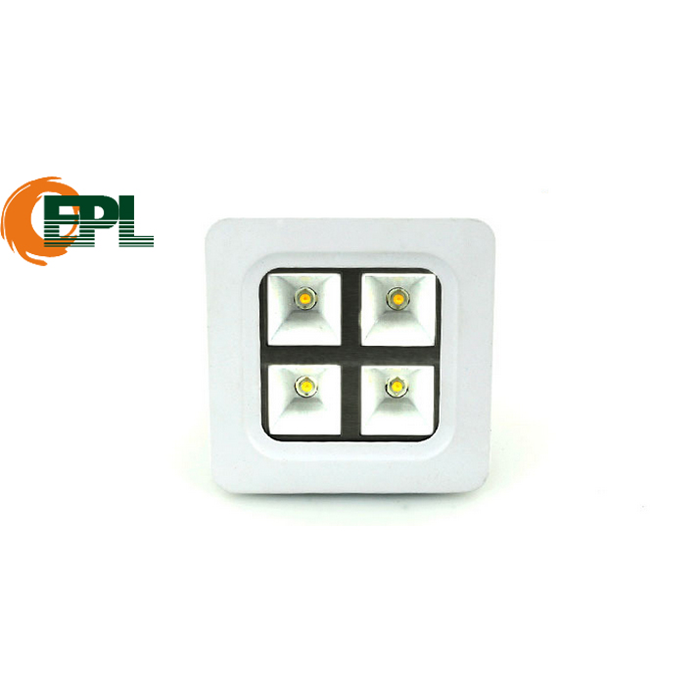

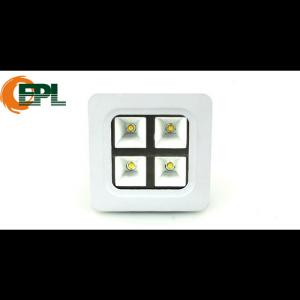

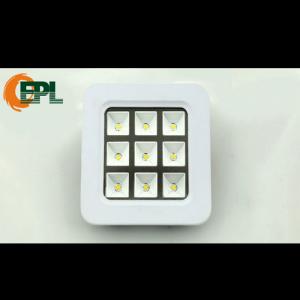

New design LED grid downlight / panel 4W / 9W / 16W / 25W-Product Center-EP LIGHTING INDUSTRY CO.,LTD.-

Product Description

1. Features

EP LED GRID RECESSED DOWNLIGHT / PANEL is with superior optical film which can increase more than 15% reflective efficiency than usual LED downlight/panel and superior optical diffusion plate which also help our panel light get higher light transmittance and diffusion. It can be widely used in restaurants.offices,shopping malls, hotels, supermarkets, living rooms, bathrooms and so on.



2.Specification

Model

EP-GRDS100-4W

EP-GRDS150-9W

EP-GRDS100-16W

EP-GRDS100-25W

LED Type

1W high power LED

1W high power LED

1W high power LED

1W high power LED

LED Chips

CREE or Bridelux

CREE or Bridelux

CREE or Bridelux

CREE or Bridelux

Input Voltage

AC 85-265V (50/60Hz)

AC 85-265V (50/60Hz)

AC 85-265V (50/60Hz)

AC 85-265V (50/60Hz)

Driver Efficiency

>90%

>90%

>90%

>90%

Rate Power

4W

9W

16W

25W

CCT

2700K~6500K

2700K~6500K

2700K~6500K

2700K~6500K

Luminous Flux

400lm

900lm

1600lm

2500lm

CRI

80

80

80

80

Beam Angle

180°

180°

180°

180°

Surface Size

100*100mm

150*150mm

180*180mm

217*217mm

Hole Size

85*85

135*135

165*165

195*195

Install Method

Embedded

Embedded

Embedded

Embedded

Warranty

Three Years

Three Years

Three Years

Three Years


Hits: 【Print】
