Product Description
1. EP LED wall washer light Features

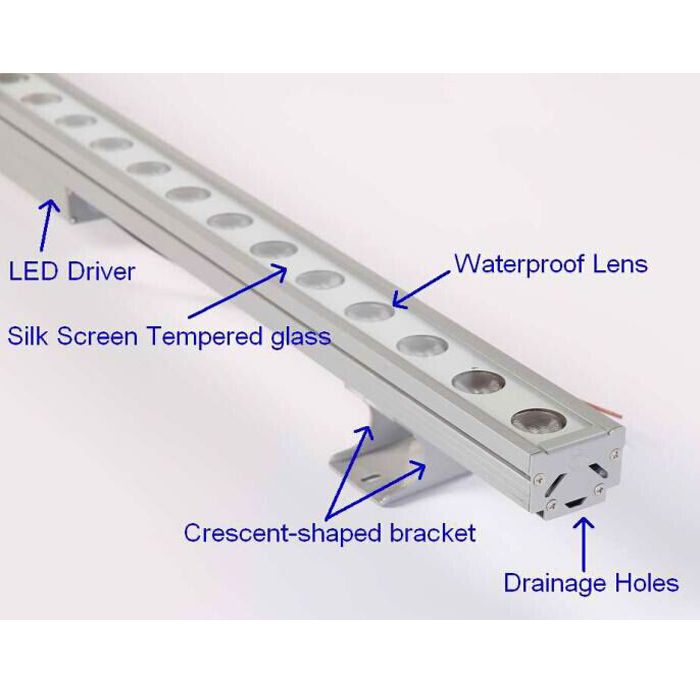

1.Automatic drainage holes :it could let the
water and fog come out of the body, much better waterproof.
2.Crescent-shaped bracket can be mounted at
90degree.
3.External LED driver under the body , better
heatsink and Easy to repair.

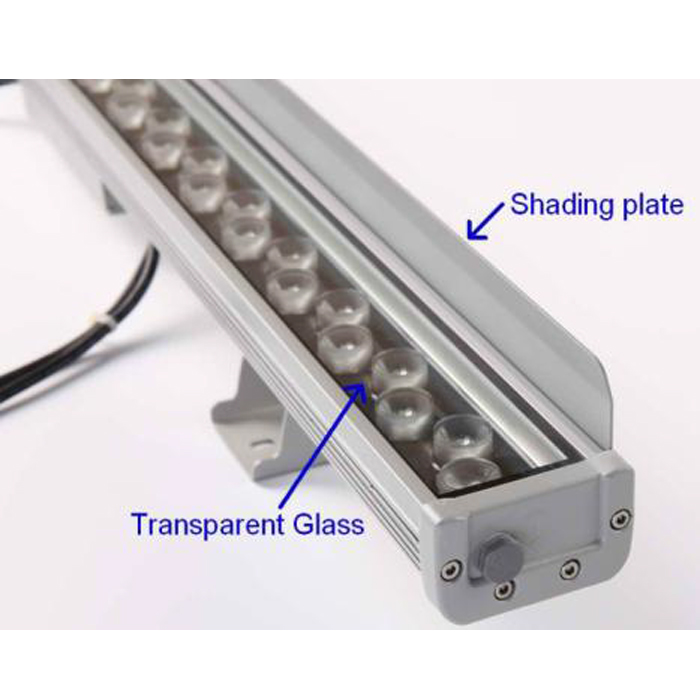

4.Shading plate for selection, print the
logo at ease on the glass
5.Transparent or Silk Screen Tempered glass for
selection.

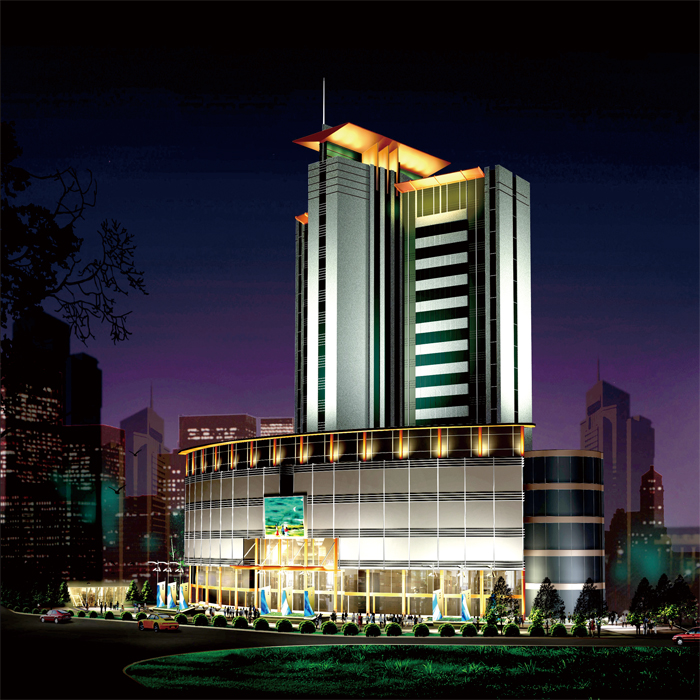

2. Applications
1) Ambience lighting for bar, dance hall
2) Lighting for
billboard, factory,hotle,building of the outside wall
3) Lighting for
landscaping building, wall washing for bars, clubs, Bridge,stages, plazas
3.Specification
|
Model |
W |
W |
W |
|
LED Type |
1W high power LED |
1W high power LED |
1W high power LED |
|
LED Chips |
Philips or San'an |
Philips or San'an |
Philips or San'an |
|
Control by |
Internal/IR/DMX512 |
Internal/IR/DMX512 |
Internal/IR/DMX512 |
|
Input Voltage |
AC 85-265V or DC24V(50/60Hz) |
AC 85-265V or DC24V(50/60Hz) |
AC 85-265V or DC24V(50/60Hz) |
|
Rate Power |
12±1W |
24±1W |
36±1W |
|
Color |
R/G/B/W |
R/G/B/W |
R/G/B/W |
|
Material |
Tempered glass and
Die-casting aluminum |
Tempered glass and
Die-casting aluminum |
Tempered glass and
Die-casting aluminum |
|
Beam Angle |
30/45/60/90° |
30/45/60/90° |
30/45/60/90° |
|
PF |
>0.95 |
>0.95 |
>0.95 |
|
Dimension |
L1000*W45*H |
L1000*W45*H |
L1000*W70*H |
|
Waterproof |
IP65 |
IP65 |
IP65 |
