Product Description
1. Features

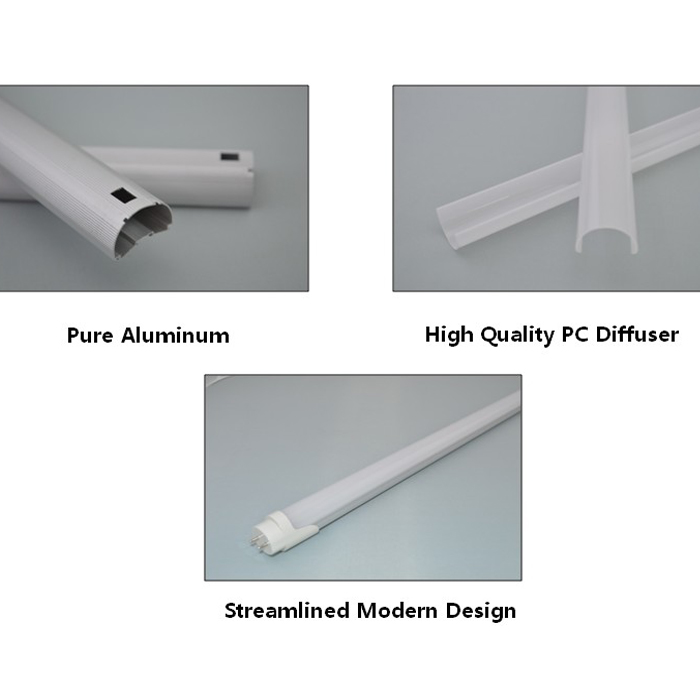

EP STANDARD T8 LED TUBE are suitable for indoor using such as office, store, library, hospital and etc. The aluminum housing is with significant heat-sinking performance to help the LED keep cool and stable working status.
2.Specification
|
T8-EP60-48B-10W |
T8-EP90-72B-14W |
T8-EP120-96B-18W |
T8-EP150-120B-24W |
T8-EP240-192B-40W |
|
|
LED Type |
SMD 2835 LED |
SMD 2835 LED |
SMD 2835 LED |
SMD 2835 LED |
SMD 2835 LED |
|
LED Chips |
Epistar Chips |
Epistar Chips |
Epistar Chips |
Epistar Chips |
Epistar Chips |
|
Base Type |
G13 |
G13 |
G13 |
G13 |
G13 |
|
Input Voltage |
AC 85-265V
(50/60Hz) |
AC 85-265V
(50/60Hz) |
AC 85-265V
(50/60Hz) |
AC 85-265V
(50/60Hz) |
AC 85-265V
(50/60Hz) |
|
Driver Efficiency |
>90% |
>90% |
>90% |
>90% |
>90% |
|
Rate Power |
10±1W |
14±1W |
18±1W |
24±1W |
40±1W |
|
CCT |
2700K~6500K |
2700K~6500K |
2700K~6500K |
2700K~6500K |
2700K~6500K |
|
Luminous Flux |
110lm/w |
110lm/w |
110lm/w |
110lm/w |
110lm/w |
|
CRI |
≧80 |
≧80 |
≧80 |
≧80 |
≧80 |
|
Beam Angle |
180°±5° |
180°±5° |
180°±5° |
180°±5° |
180°±5° |
|
PF |
≥0.9 |
≥0.9 |
≥0.9 |
≥0.9 |
≥0.9 |
|
Dimension (no pin) |
L |
L |
L |
L |
L |
|
Material |
Half PC+Half AL |
Half PC+Half AL |
Half PC+Half AL |
Half PC+Half AL |
Half PC+Half AL |
|
Warranty |
Three Years |
Three Years |
Three Years |
Three Years |
Three Years |
|
Insulation Resistance |
＞ |
＞ |
＞ |
＞ |
＞ |
