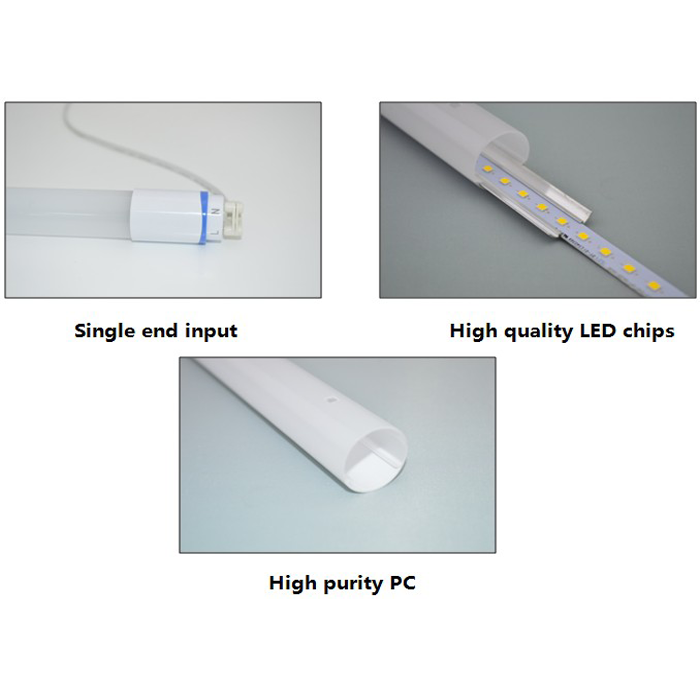

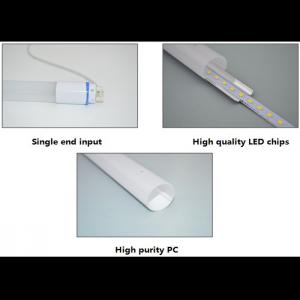

Product Description
1. Features
These series tubes are suitable for North American Electronic Ballast
and Magnetic Ballast can directly take place the CFL, the truly retrofit kit
for the traditional fluorescent. The plastic enclosure is extremely safe, can
perfectly pass the LVD testing. It is the perfect LED tube choice.
2. Specification
|
Model |
T8-24W1500XY-KZ |
|
LED Type |
SMD 2835 LED |
|
LED Chips |
Epistar Chips |
|
Base Type |
G13 |
|
Input Voltage |
AC 100-277V
(50/60Hz) |
|
Driver Efficiency |
>90% |
|
Rate Power |
24±1W |
|
CCT |
2700K~6500K |
|
Luminous Flux |
2640 Lm |
|
CRI |
≧80 |
|
Beam Angle |
270°±5° |
|
PF |
≥0.9 |
|
Dimension |
L 1498mm*Φ26mm |
|
Material |
High Purity PC +
Pure Aluminum Sink Inside |
|
Weight |
270g |
|
Warranty |
Five Years |
|
SCDM |
≤7dB |
|
Withstand Voltage |
AC 4,000V |
|
Insulation Resistance |
＞4MΩ（DC 500V） |
