Product Description
1.General Description
The Germicidal UV Lamp is used to kill Bacteria,Viruses,Mites and
Eliminated odor, Removed smoke by UVC and Ozone.The UV Germicidal lamp is more
effective than liquid disinfectant which can killing 99% of bacteria and
viruses(Like Cyanobacteria,Staphylococcus,Candida albicans，E.coll.Salmonella，Flu Virus),It use
powerful 36 Watt UVC Quartz lamp,effectively covers up to 25~36 Square meter,It
can make 360 degree steriization. ldeal for indoor use,such as
houses,factories,restaurant,hospitals,and schools etc.
2.Parameters
|
Specifications |
|
|
Watts/Volt. |
36W/220VAC or 110VAC |
|
Length |

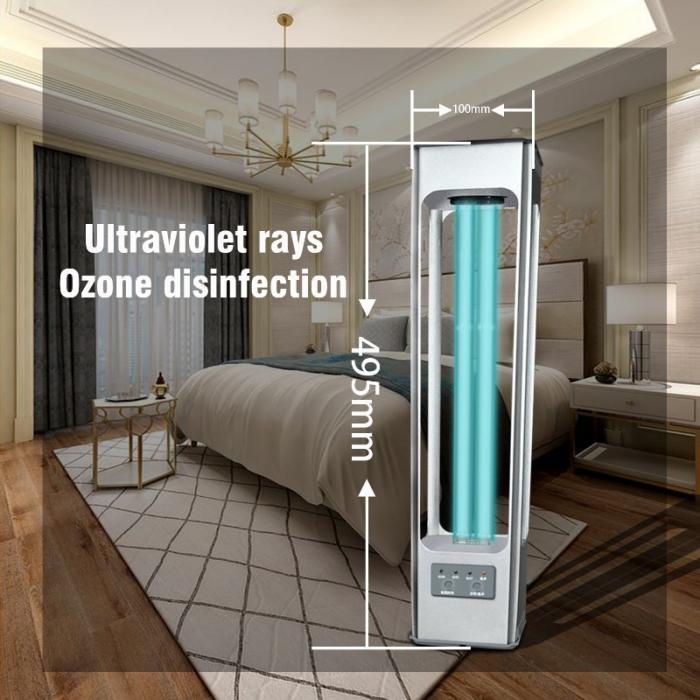

L105*W105*H495mm |
|
Light body colour |
Silver/Can be customsized by coat painting |
|
Light body texture |
Aluminum body+ ABS Shell |
|
Light source |
36 Watt UVC Quartz lamp |
|
Technology standard |
UVC: 253.7nm or O3 :185nm optional |
|
Control Method |

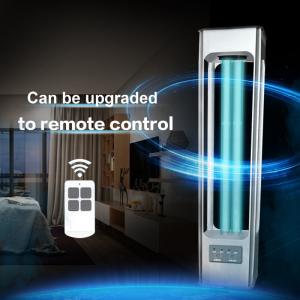

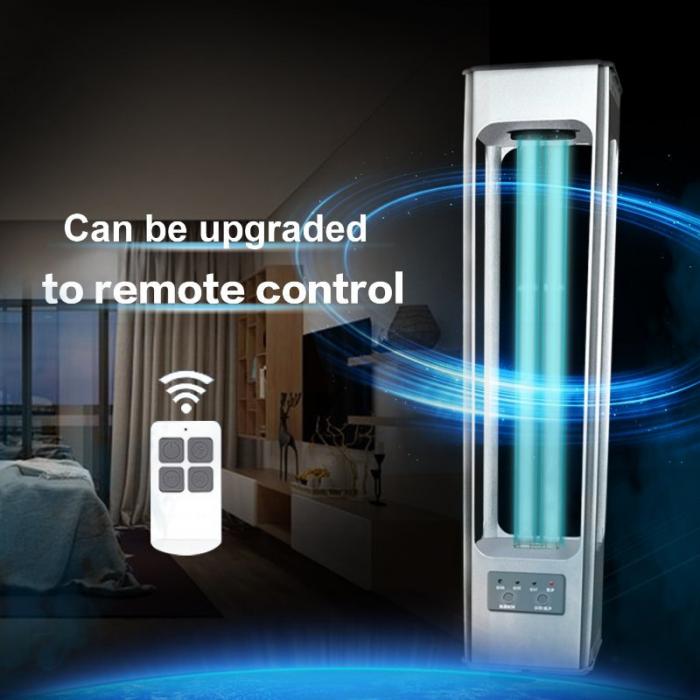

Switch panel or Remote control(Remote control distance
is 15 meters without block) |
|
Time Setting |
15 min for Wardrobe, cupboard,Car etc.;30 min for
bedroom,bathroom or dinning room;60 min for living room etc. |
|

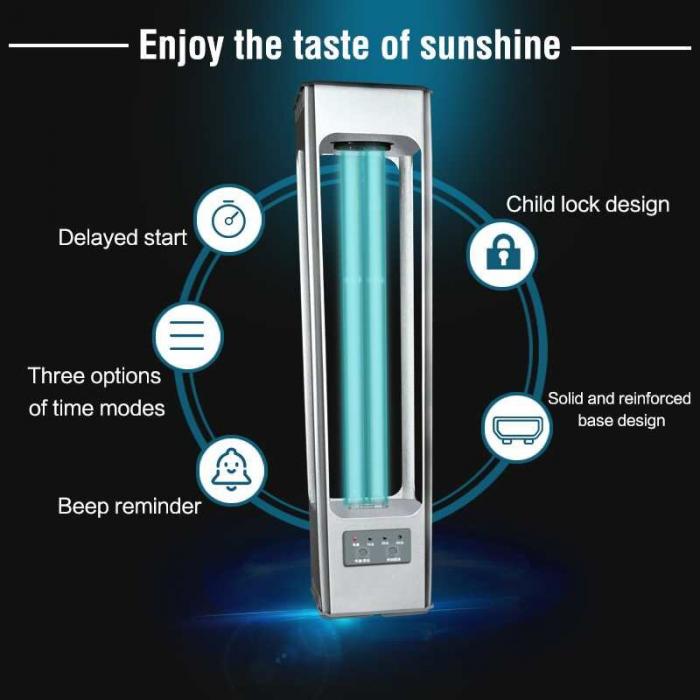

Child safety lock |
Child safety lock is at the bottom of the lighting
fixture. (O pattern means open and – pattern means closed) When child safety
lock open, the lamp will not work. |
|
Beep warning |
There'll be beeping sound for reminding after
sterilization completed. |
|
Delayed Start |
There’ll be 10 seconds time delay to real working
status after you pressed “start” button. |
|
Power Plug info. |
|
|
Installation |
Just put on flat surface like ground or desk with our
special design 4 corner holder |
|
Mite remove rate |
100% |
|
Sterilizing rate |
99.9% |
|
Room space |
Suggest for 25~36 M2 room space using |
|
OEM Optional |
Voice control, lighting fixture color customized, Plug
customized |
|
Certificate |
CE ROHS FCC |
|
Warranty |
1 year for UVC tube; 2 years for lighting fixture |
3. Warning
3. Using Step
The device will emits
very strong UVC light, which will be harmful to your health, so please don't
stay close with this light after it turns on (including your pet, plant and
others)
1. Keep the child lock
on closed status”-“. Close the room’s doors and windows.
2. PRESS ON BUTTON “POWER/START”
3. PRESS ON BUTTON “TIMESELECTION” to decide 15,
30 or 60 minutes you want. After you selected successfully, the selected time indictor
lamp will glow.
4. PRESS ON BUTTON AGAIN “POWER/START” again and
the lamp will start to work.
5. Leave the scene and back the room after one hour.
6. After the sterilization completed, restore the
child lock open “o”. Open your window and doors.
