Product Description
1. Features
✅The light
body is made of high purity Aluminum and tempered glass, individual module and
air convection cooling design.
✅ Meanwell
driver and Philips 3030 LED adopted, 140lm/W high brightness.

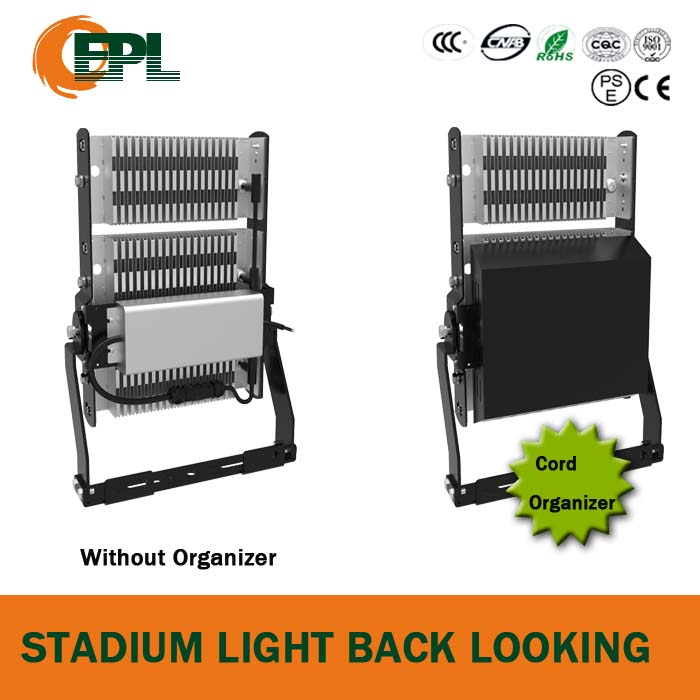

✅ Back cord
organizer be provided to protect human safe.

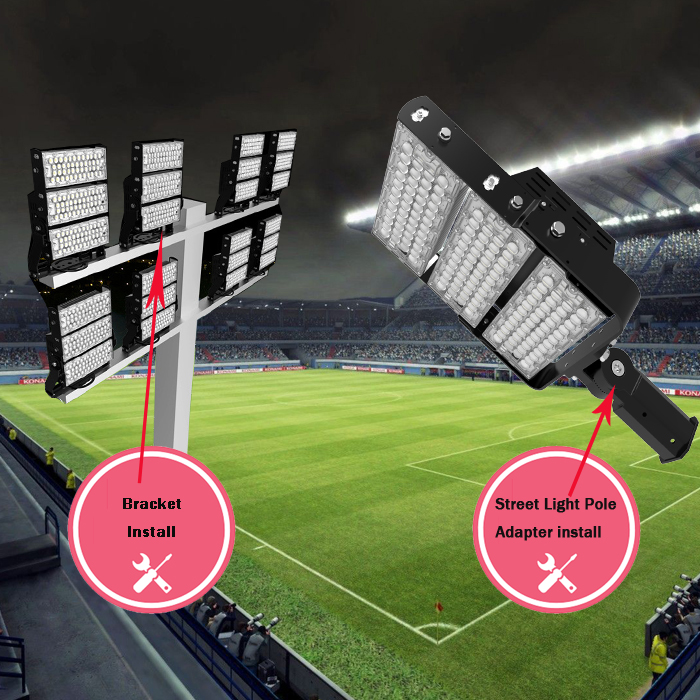

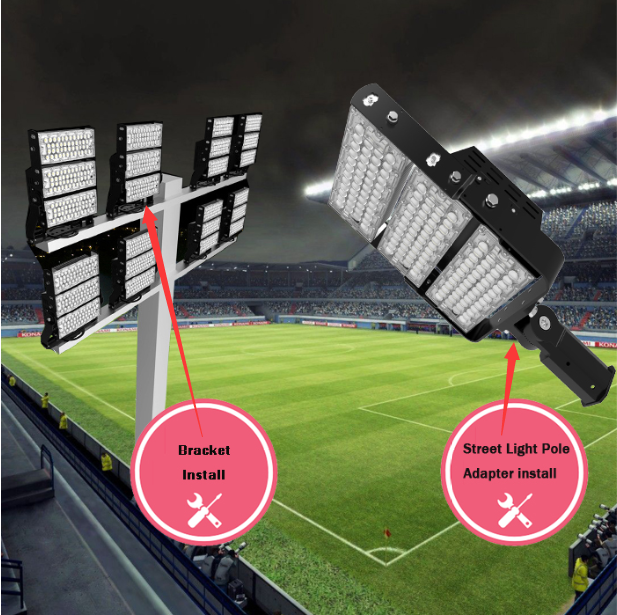

✅ Two
installation method: Bracket (for high pole) or street light pole adapter can be provided.
✅ Innovation individual module design and each
module can be adjustable to 30 degree, bracket can be adjusted up to 270
degree. It be with engraved angle scale to ensure accurate beam angle adjustment. It helps a lot to fit for diversity
installation environment.
✅ Energy
saving 80% than traditional light and as long as five years warranty.
2.Specification
|
Model |
EP-GM- |
EP-GM- |
EP-GM- |
EP-GM- |
EP-GM- |
|
LED
Type |
SMD 3030 |
SMD 3030 |
SMD 3030 |
SMD 3030 |
SMD 3030 |
|
LED
Chips |
PHILIPS LUXEON |
PHILIPS LUXEON |
PHILIPS LUXEON |
PHILIPS LUXEON |
PHILIPS LUXEON |
|
Input
Voltage |
AC200~240V |
AC200~240V |
AC200~240V |
AC200~240V |
AC200~240V |
|
Power
Factor |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
|
Rate
Power |
400W-480W |
600W |
720W |
840W |
960W |
|
CCT |
2700K~6500K |
2700K~6500K |
2700K~6500K |
2700K~6500K |
2700K~6500K |
|
Luminous
Flux |
140lm/W |
140lm/W |
140lm/W |
140lm/W |
140lm/W |
|
IP
Rating |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
|
Beam
Angle |
8°/20°/40°/60°/90°/140×100° |
||||
|
Material
|
Aluminium, Tempered Glass |
||||
|
Lamp
Size |
L265.7*W190.6*H116mm |
L397.7*W294*H67.5mm |
L529.7*W294*H67.5mm |
L529.7*W582*H85.6mm |
L793.7*W582*H85.6mm |
|
Warranty |
Five Years |
Five Years |
Five Years |
Five Years |
Five Years |
|
Mark: 120/240/360/480/720/960/1200/1500W can be provided. |
|||||

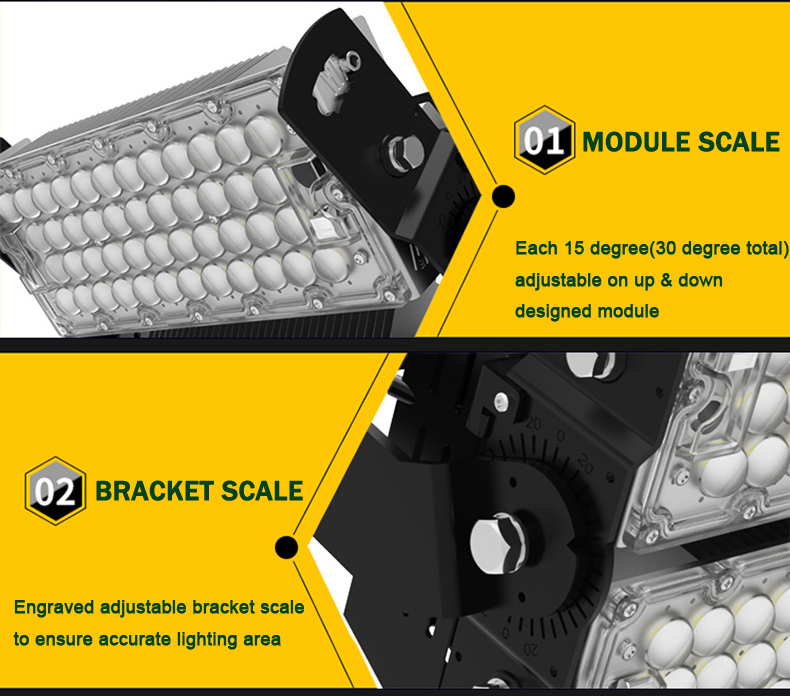

3.Adjustable Scale

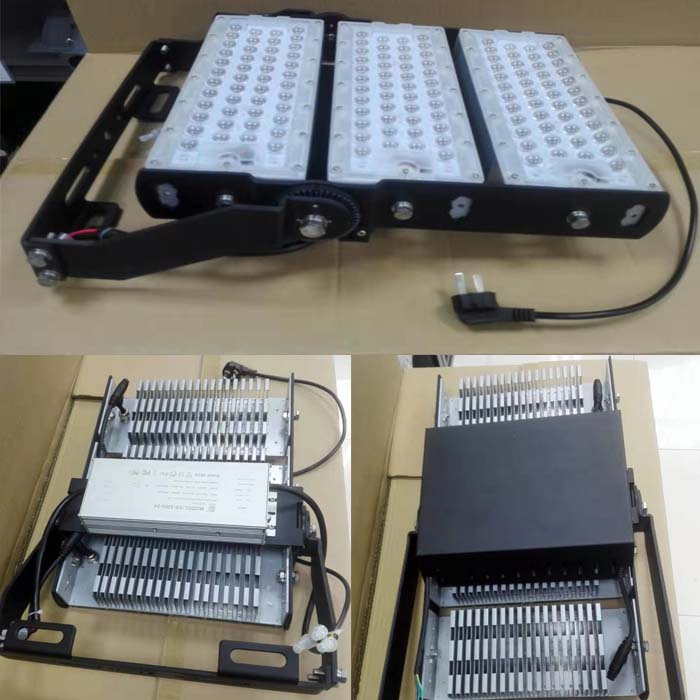

5.Actual Finished Product Picture (Driver Box Compare)
